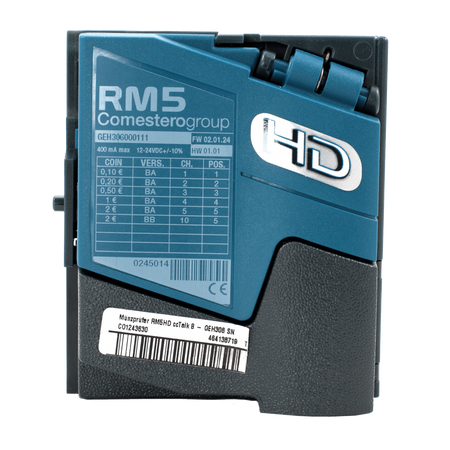

RM5F HD tropicalized coin acceptor
- RM5 HD (F format) – Tropicalized coin validator for automated machines. Fast and precise validation speed (up to 6 coins/sec), two mechanical versions (A/B), and ten operating configurations.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

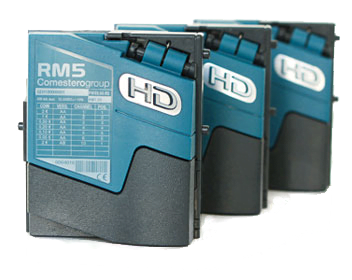

The RM5F HD in F-housing is an electronic coin and token validator by Comestero, designed for applications requiring high discrimination of counterfeit coins and high-speed operation. The HD series was developed for the vending, amusement, and ticketing industries, where precision, diagnostics, and operational stability are paramount.
This model identifies coins at a speed of up to 6 coins per second and utilizes an advanced validation system based on five sensors and the analysis of ten comparison parameters.
Applications
The RM5F HD coin validator is used in:
vending machines
amusement and gaming machines
ticketing and payment systems
self-service kiosks operating in continuous mode
OEM projects requiring high-level anti-fraud security
F-Housing – coin path
The F-housing allows for both top and front coin insertion. Once inserted, the coin passes through the validation path and security systems, and is then directed to the appropriate outlet.
accepted coins are directed to the bottom outlet, into a cashbox, container, or sorter
rejected coins are returned to the front of the device
This configuration facilitates installation in machines with a front-entry faceplate and ensures a clear, user-accessible coin return.
Key features of the HD series
acceptance speed up to 6 coins per second
5 validation sensors: 3 inductive, 1 optical, 1 magnetic
analysis of 10 comparison parameters
62 calibration channels
anti-stringing system
coin movement direction detection
3 mechanical traps in the coin path
wire cutting blade to prevent manipulation attempts
housing made of shock-resistant ABS
Mechanical versions
RM5F HD is available in two mechanical versions:
Version A
optimized for Euro coins
maximum diameter 27 mm
maximum thickness 2.4 mm
Version B
maximum diameter 31.5 mm
maximum thickness 3.4 mm
Available communication protocols
The RM5F HD series is available in the following versions:
ccTalk
parallel validator
totalizer
The communication protocol must be specified when ordering.
Technical specifications
power supply: 12 to 24 VDC
acceptance speed: up to 6 coins per second
number of calibration channels: 62
operating temperature: 0 to 55 degrees Celsius
dimensions: 102 x 99 x 55.5 mm
weight: approx. 200 grams
Scope of delivery and optional features
The standard offer includes the RM5F HD validator in the selected communication version.
Additionally, for a fee, the customer can choose:
USB port
coin and token programming service
gate variant A or B
To perform programming, the following must be specified:
which coins or tokens are to be accepted
the selected communication protocol
If you have any doubts regarding version selection, configuration, or connection of the coin validator, please contact us. We will help you select the appropriate variant for your specific device.
The manufacturer guarantees repair of the equipment for up to 12 months from the date of purchase. Please contact us before submitting a warranty claim.
