RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
Our bestseller

RM5F EVOLUTION Coin Validator with ccTalk

+ Add to compareAdd to shopping list
  • Easy-to-use and universal solution
  • RM5 EVOLUTION is the ideal solution for anyone looking for an easy-to-use coin and token validator.
  • It can be used in various industries, including amusement arcades, theme parks, retail stores, and many others.
USB port
Programming service
Coins

119,20 € incl. VAT/1pcs.
96,88 € net/1pcs.

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
You can buy for pts.
of
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
Product available in very limited quantities
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in very limited quantities
Shipment
Free and fast delivery from 469,20 €
14 days for easy returns
Find out in which store you can check the product and buy it right away
RM5F EVOLUTION Coin Validator with ccTalk
RM5F EVOLUTION Coin Validator with ccTalk
one size
Safe shopping
After purchase you will receive pts.

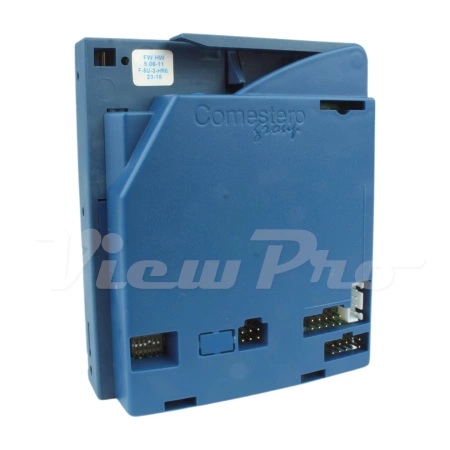

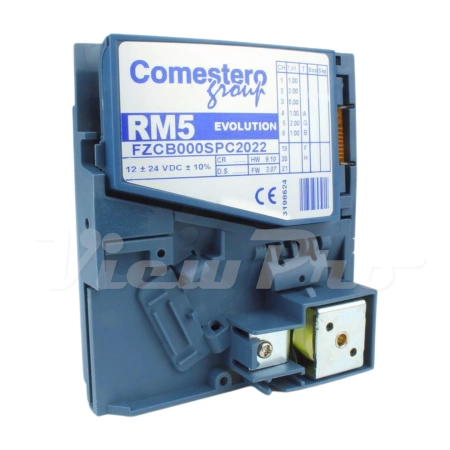

The RM5F Evolution ccTalk in mechanical version F is an electronic coin and token validator by Comestero, designed for devices that communicate with the acceptor via the ccTalk protocol. Instead of pulse signals, the validator transmits information digitally through a serial bus, and the credit accumulation logic is implemented on the device controller side.

Application

 The RM5F Evolution ccTalk coin validator is used in devices where the controller or mainboard supports the ccTalk protocol, for example in amusement machines and other self-service devices with a ccTalk controller:

  • vending machines with a ccTalk-compatible controller

  • amusement machines with serial communication

  • payment systems based on microcontrollers

  • OEM projects requiring digital communication with the acceptor

  • self-service devices where the controller reads events via a serial bus

Version F – coin path



Mechanical version F allows for coin insertion from both the top and the front of the device. The coin passes through the measurement sensors and, upon verification, is directed to the appropriate exit.

  • accepted coins go to the lower exit (to a cashbox, container, or hopper)

  • rejected coins return to the front of the device (user return)



Key features of the ccTalk version

  • communication via ccTalk protocol (serial interface)

  • support for up to 16 coin and token channels

  • acceptance speed up to 3 coins per second

  • coin diameter range from 16 to 31.5 mm

  • power supply from 12 to 24 Vdc

RM5F EVOLUTION ccTalk coin validator version F

Technical Specifications

  • number of channels: 16

  • speed: up to 3 coins per second

  • coin diameter: from 16 to 31.5 mm

  • power supply: from 12 to 24 Vdc

  • dimensions: 3.5 inches (102 x 89 x 52 mm)

  • weight: approx. 185 grams

  • operating temperature: from 0 to 55 °C

  • humidity: from 10 to 75 percent (non-condensing)

Scope of offer, communication port, and programming

The standard offer includes the RM5F Evolution ccTalk acceptor with a classic serial port.

Additionally, for an extra fee, the customer can choose:

  • acceptor version with a USB port

  • coin and token programming service

To perform programming, please specify:

  • which coins or tokens should be accepted

In case of any doubts regarding the configuration selection or the connection method of the coin validator, please contact us. We will help you choose the right version for your specific device.

Brand
Comestero
Entity responsible for this product in the EU
SUZOHAPP POLAND SP. Z O.O.More
Address: ul. SKŁADOWA 1BPostal code: 62-023City: KONINKOCountry: PolandPhone number: +48 532 857 396E-mail: sales.eu@suzohapp.com
Series
RM5 Evolution
Warranty
Manufacturer’s warranty: 1 year
Brand
ComesteroMore
Firma Comestero, która produkuje akceptory monet RM5 Evolution, jest znana na całym świecie za swoją jakość i niezawodność. Akceptory te są cenione za wyjątkową selektywność oraz ekstremalną wszechstronność programowania, które umożliwiają klonowanie systemu, umożliwiające przenoszenie parametrów konfiguracyjnych z jednego akceptoru monet na inny​.
Coin Acceptor Housing
FMore
wrzut monety: góra lub przód; zwrot monety niezaliczonej: przód
Programming service
Without programming
With programming
Coins
5 cents
10 cents
20 cents
50 cents
1 euro
2 euros
token 1
token 2
USB port
Without USB port
With USB port (for ccTalk communication)
Manufacturer’s warranty: 1 year

The manufacturer guarantees repair of the equipment for up to 12 months from the date of purchase. Please contact us before submitting a warranty claim.
