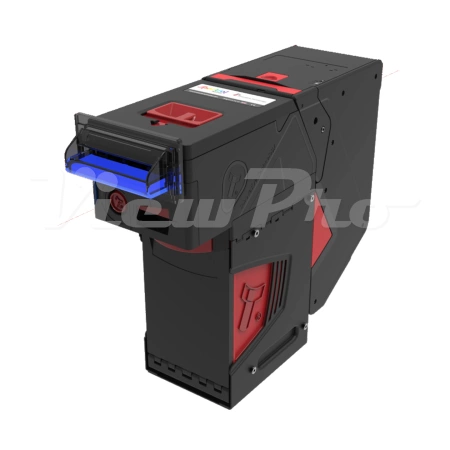

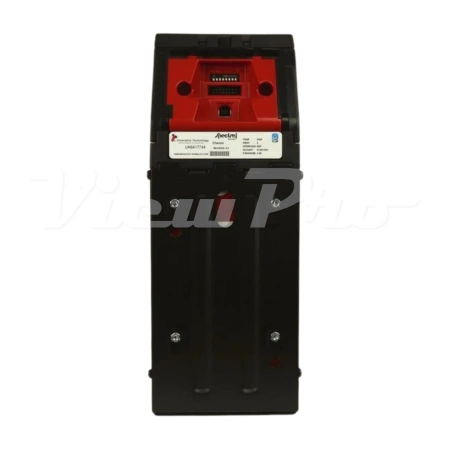

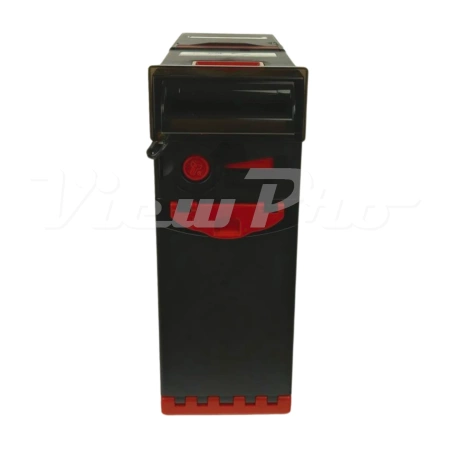

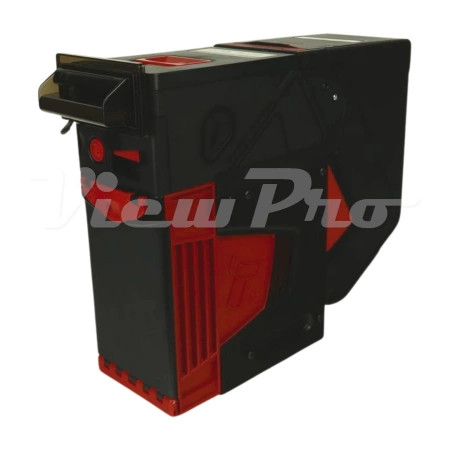

Spectral Payout – Innovative Banknote Management System

Spectral Payout is a modern, complete banknote handling system from Innovative Technology, based on the NV200 Spectral platform. The solution is designed for professional use in self-service devices, vending machines, and other applications where continuous operation and efficient cash management are critical.

The system combines:

• advanced banknote validation,

• temporary storage of banknotes of different denominations,

• and banknote payout for change or refunds.

How does Spectral Payout work?

Spectral Payout allows the system to store up to 80 banknotes of mixed denominations in the payout module. Accepted banknotes can then be:

• dispensed to the user as change,

• used for cash refunds,

• or transferred to the cashbox during cash collection.

As a result, the system:

• eliminates the problem of running out of coins for change,

• significantly reduces the need for coins,

• reduces service frequency and cash replenishment operations.

Key Features of the Spectral Payout System:

• Mixed denomination banknote storage – up to 80 banknotes in a single module

• Dispensing of any stored banknote – full control over payout logic

• Spectral Imaging technology – full banknote image capture with very high counterfeit detection accuracy

• Detection of soiled and worn banknotes – increased transaction security and reliability

• Automatic banknote centering – banknotes are straightened before validation

• Reduced reliance on coins – lower operating and servicing costs

• Banknote transfer to the cashbox – fast and convenient cash collection

• Industrial-grade construction – designed for intensive commercial use

Applications of Spectral Payout:

• Next-generation vending machines

• Self-service terminals

• Sales and information kiosks

• Parking and ticketing systems

• Gaming and amusement machines

• OEM devices requiring efficient banknote handling

Technical Specification (System):

• Power supply: 12 V / 24 V DC

  • standby: 400 mA

  • operation: 3 A

  • peak: 5.5 A

• Payout module capacity: up to 80 banknotes

• Cashbox capacity: 500 or 1000 banknotes (optional)

• Supported banknotes:

  • acceptance: width 60–85 mm, length 115–170 mm

  • storage: width 60–82 mm

• Interfaces: USB (with IF17), RS232, Open Collector

• Mean cycles between failures (MCBF): 100,000

• Weight: approx. 5.5 kg

Why choose Spectral Payout?

Spectral Payout is a solution for projects where the key priorities are:

• uninterrupted device operation,

• reduced dependence on coins,

• high security levels,

• and lower operating costs.

The system enables the creation of modern machines that dispense change in banknotes, operate longer without service intervention, and offer greater convenience for both operators and end users.

If you are planning a system that dispenses change using banknotes or want to reduce coin usage in your device, contact us. We’ll be happy to advise and prepare a solution best suited to your project.
