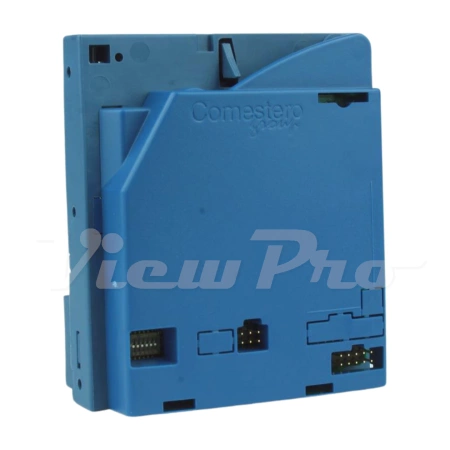

RM5V EVOLUTION tropicalised Coin Validator
- 6 different models
- 18 different configurations
- Coins accepted: ∅ 16~31.5 mm, thickness up to 3.3 mm
- Channels: up to 59, each of them can be redirected to the outlets
- First 6 channels support Self-Prog mode
- Outlets: open collection (NPN)
- Dimensions: 102 x
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

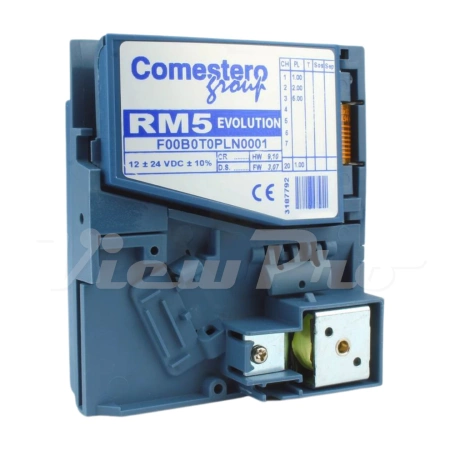

The RM5 Evolution in mechanical version V is an electronic coin validator by Comestero, designed for vending machines, amusement devices, and various types of self-service machines. It supports up to 59 validation channels and identifies coins at a speed of up to 3 coins per second.
The tropicalized version is specially treated to operate in environments with high humidity and varying temperatures. It is ideal for devices installed in car washes, self-service laundries, vacuum cleaners, and seasonal outdoor machines.
Application
The RM5 Evolution V coin validator is used in:
vending machines
gaming and amusement machines
car washes
self-service vacuum cleaners
laundromats
photocopiers
photo booths
ticketing and parking machines
other devices requiring payment via coins or tokens
Version V – coin path
Mechanical version V features a vertical coin path with a front return for rejected coins. Once inserted from the top, the coin passes through the measurement path equipped with seven sensors responsible for parameter verification.
Accepted coins are directed to the lower exit, leading to a cashbox, container, or hopper. Rejected coins return to the front of the device. This layout is ideal for machines where a visible and easily accessible coin return is required for the user, while maintaining a lower collection point for accepted coins.
The RM5 Evolution in version V offers:
- support for up to 59 validation channels
- acceptance of coins with diameters from 16 to 31.5 mm and thickness up to 3.3 mm
- maximum acceptance speed of up to 3 coins per second
- seven measurement sensors
- NPN open collector outputs
- power supply range from 12 to 24 Vdc
Available operating modes
The RM5V Evolution can operate in various modes, depending on the requirements of the master device:
- parallel mode
- binary mode
- multi-pulse mode
- totalizer mode with one price
- totalizer mode with two prices
- totalizer mode with credit pulse emission
- totalizer mode with credit on demand emission
- timed credit emission mode
- dedicated photocopier mode with credit accumulation
When ordering, please specify the required operating mode and the method of data transmission to the device.
Technical Specifications
- Number of validation channels: up to 59
- Coin diameter: from 16 to 31.5 mm
- Coin thickness: up to 3.3 mm
- Acceptance speed: up to 3 coins per second
- Power supply: from 12 to 24 Vdc
- Outputs: NPN open collector
- Weight: approx. 185 grams
- Mounting format: 3.5 inches
The offer presented includes the RM5 Evolution coin acceptor in mechanical version V.
It is possible to add a programming service to your order. In this case, please specify:
which coins or tokens should be accepted
how the device should transmit credit information, e.g., parallel or binary mode
The programming service is performed individually according to the provided specification.
In case of any doubts regarding the configuration selection or the connection method of the coin validator, please contact us. We will help you choose the right version for your specific device.
The manufacturer guarantees repair of the equipment for up to 12 months from the date of purchase. Please contact us before submitting a warranty claim.
