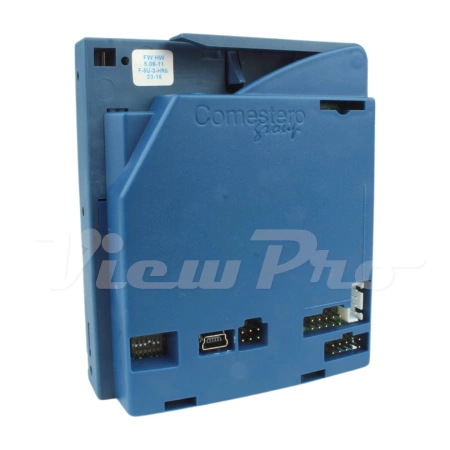

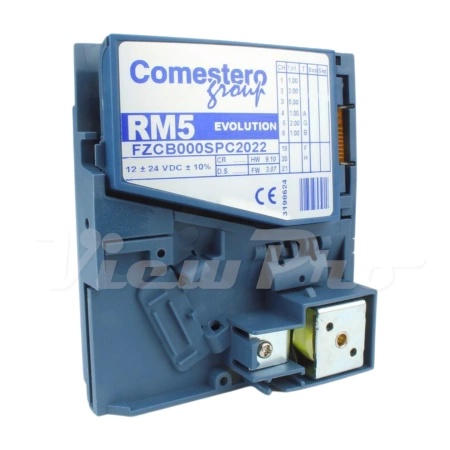

RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk

RM5G EVOLUTION Coin Validator with ccTalk

+ Add to compareAdd to shopping list
  • Easy-to-use and universal solution
  • The RM5 Evolution is the ideal solution for anyone looking for a simple and easy-to-use coin and token validator. It can be used in various industries, including amusement arcades and theme parks.
USB port
Programming service
Coins

120,10 € incl. VAT/1pcs.
97,67 € net/1pcs.

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
You can buy for pts.
of
RM5G EVOLUTION Coin Validator with ccTalk
RM5G EVOLUTION Coin Validator with ccTalk
Product made to order
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product made to order
Shipment
Free and fast delivery from 473,00 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.

The RM5G Evolution ccTalk in the G mechanical version is an electronic coin and token validator by Comestero, designed for machines that communicate with the acceptor via the ccTalk protocol[cite: 317, 318, 64]. Instead of pulse signals, the validator transmits information digitally through a serial bus, and the credit accumulation logic is implemented on the machine controller side[cite: 34, 74].

Application

The RM5G Evolution ccTalk coin validator is used in devices where the controller or mainboard supports the ccTalk protocol, for example in: [cite: 32, 64]

  • vending machines with a ccTalk-compatible controller [cite: 32]

  • amusement machines with serial communication [cite: 32, 74]

  • payment systems based on microcontrollers [cite: 32]

  • OEM projects requiring digital communication with the acceptor [cite: 35, 74]

  • self-service devices where the controller monitors events via a serial bus [cite: 74]

Version G – coin path

The mechanical version G features a vertical coin path with a lower exit for both accepted and rejected coins[cite: 59]. After being inserted from the top, the coin passes through the measurement sensors and, upon verification, is directed to the appropriate exit channel[cite: 30, 59].

  • accepted coins go to the lower exit (to a cashbox, container, or hopper) [cite: 59, 60]

  • rejected coins are also directed to the lower exit, into a separate return path within the machine's structure [cite: 59, 60]



Key features of the ccTalk version

  • communication via ccTalk protocol (serial interface) [cite: 34, 64]

  • support for up to 16 coin and token channels [cite: 34]

  • acceptance speed up to 3 coins per second [cite: 34]

  • coin diameter range from 16 to 31.5 mm [cite: 34, 847]

  • power supply from 12 to 24 Vdc [cite: 34, 62]

RM5G EVOLUTION ccTalk coin validator version G

Technical Specifications

  • number of channels: 16 [cite: 34]

  • speed: up to 3 coins per second [cite: 34]

  • coin diameter: from 16 to 31.5 mm [cite: 34, 847]

  • power supply: from 12 to 24 Vdc [cite: 34, 62]

  • dimensions: 3.5 inches (102 x 89 x 52 mm) [cite: 34, 847]

  • weight: approx. 185 grams [cite: 847]

  • operating temperature: from 0 to 55 °C [cite: 847]

  • humidity: from 10 to 75 percent [cite: 847]



Scope of offer, communication port, and programming

The standard offer includes the RM5G Evolution ccTalk acceptor with a classic serial port[cite: 68, 86].

Additionally, for an extra fee, the customer can choose:

  • acceptor version with a USB port [cite: 35, 73]

  • coin and token programming service [cite: 35, 421]

To perform programming, please specify:

  • which coins or tokens should be accepted [cite: 51, 843]

In case of any doubts regarding the configuration selection or the connection method of the coin validator, please contact us. We will help you choose the right version for your specific device. [cite: 454]
