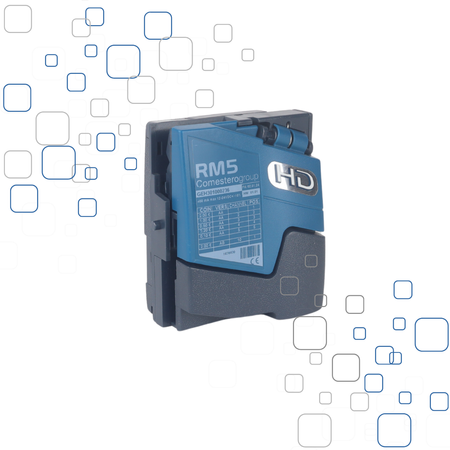

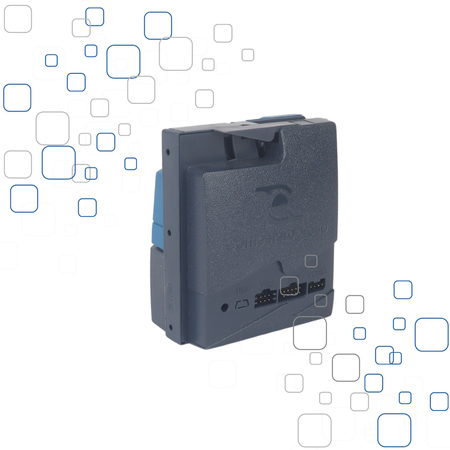

RM5B HD tropicalised Coin Validator
- RM5B HD – tropicalized coin acceptor for automatic machines. Fast and precise coin validation (up to 6 coins per second), two diameter variants (A/B) and ten operating configurations.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
The RM5B HD in Housing B is an electronic coin and token validator by Comestero, designed for devices requiring high resistance to counterfeit coins and fast operation. The HD series was developed for the vending, amusement, and automated fare collection industries, where precision, diagnostics, and operational stability are paramount.
The model recognizes coins at a speed of up to 6 coins per second and utilizes an advanced measurement system based on five sensors and the analysis of ten comparative parameters.
Application
The RM5B HD coin validator is used in:
vending machines
amusement and gaming machines
fare collection systems
self-service devices operating in continuous mode
OEM projects requiring high levels of anti-fraud security

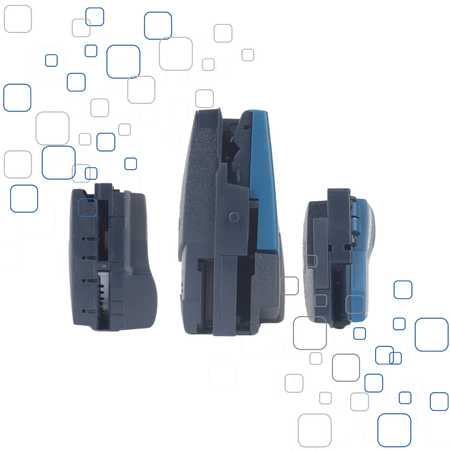

Housing B – coin track
Housing B allows for coin insertion from both the top and the front of the device. Once inserted, the coin passes through the validation track and security system, and is then directed to the appropriate outlet at the bottom of the validator.
accepted coins are directed to the lower outlet, into a cash box, container, or separator
rejected coins are also directed to the lower return outlet within the machine's structure
This layout is ideal for devices where both the accepted coin path and the return path are located in the lower part of the housing.
Main features of the HD series
acceptance speed up to 6 coins per second
5 measurement sensors: 3 inductive, 1 optical, 1 magnetic
analysis of 10 comparative parameters
62 calibration channels
string detection (anti-fishing)
coin direction detection
3 mechanical traps in the coin track
cutting blade to protect against manipulation attempts
housing made of impact-resistant ABS
Variants
The RM5B HD is available in two mechanical variants:
Variant A
optimized for Euro coins
maximum diameter 27 mm
maximum thickness 2.4 mm
Variant B
maximum diameter 31.5 mm
maximum thickness 3.4 mm
Available communication versions
The RM5B HD series is available in the following versions:
ccTalk
parallel validator
totalizer
The communication protocol must be specified when placing an order.
Technical Specifications
power supply: 12V to 24V DC
acceptance speed: up to 6 coins per second
number of calibration channels: 62
operating temperature: 0°C to 55°C
dimensions: 102 x 99 x 55.5 mm
weight: approx. 200 g
Scope of Offer and Additional Options
The standard offer includes the RM5B HD validator in the selected communication version.
Additionally, for an extra charge, the customer can choose:
USB port
coin and token programming service
gate variant A or B
To perform programming, please specify:
which coins or tokens are to be accepted
the selected communication version
In case of any doubts regarding the version selection, configuration, or connection of the coin validator, please contact us. We will help you select the appropriate variant for your specific device.
The manufacturer guarantees repair of the equipment for up to 12 months from the date of purchase. Please contact us before submitting a warranty claim.
