RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator

RM5B Evolution ccTalk electronic coin validator

+ Add to compareAdd to shopping list
  • Easy to use and universal solution
  • RM5B EVOLUTION is the ideal solution for anyone looking for a professional coin and token validator.
  • It can be used in various industries, including amusement arcades, theme parks and retail.
USB port
Programming service
Coins

120,10 € incl. VAT/1pcs.
97,67 € net/1pcs.

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
You can buy for pts.
of
RM5B Evolution ccTalk electronic coin validator
RM5B Evolution ccTalk electronic coin validator
Product made to order
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product made to order
Shipment
Free and fast delivery from 473,00 €
14 days for easy returns
This product is not available in a stationary store
Safe shopping
After purchase you will receive pts.

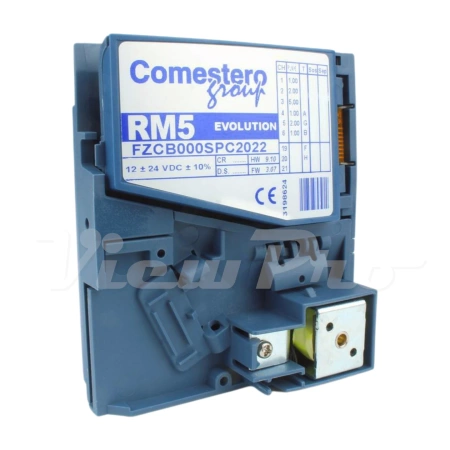

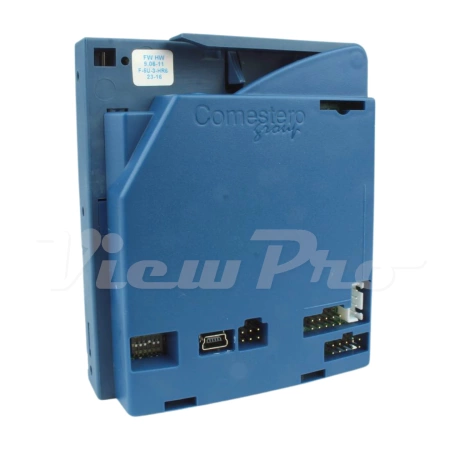

The RM5B Evolution ccTalk in Version B is an electronic coin and token validator by Comestero, designed for devices that communicate with the acceptor via the ccTalk protocol[cite: 33, 34]. Instead of pulse signals, the validator transmits information digitally through a serial bus, and the credit accumulation logic is implemented on the device controller side[cite: 34, 74].

Application

The RM5B Evolution ccTalk coin validator is used in devices where the controller or mainboard supports the ccTalk protocol, for example in:

  • vending machines with a controller supporting ccTalk [cite: 32]

  • amusement and gaming machines with serial communication [cite: 32]

  • payment systems based on microcontrollers

  • OEM projects requiring digital communication with the validator

  • self-service devices where the controller reads events via the serial bus [cite: 74]

Version B – coin path

Version B allows for both top and front coin insertion[cite: 59]. The coin passes through the measuring sensors, and after verification, it is directed to the appropriate outlet in the lower part of the validator[cite: 30, 60].

  • accepted coins are directed to the lower outlet (to a cash box, container, or hopper) [cite: 60]

  • rejected coins are directed to the lower rejection outlet, into a separate return path in the machine's structure [cite: 60]



Key features of the ccTalk version

  • communication via ccTalk protocol (serial interface) [cite: 34]

  • support for up to 16 coin and token channels [cite: 34]

  • acceptance speed up to 3 coins per second [cite: 34]

  • coin range from 16 to 31.5 millimeters in diameter

  • power supply from 12 to 24 Volts DC [cite: 34, 62]

RM5B EVOLUTION ccTalk coin validator version B

Technical Specifications

  • number of channels: 16 [cite: 34]

  • speed: up to 3 coins per second [cite: 34]

  • coin diameter: from 16 to 31.5 millimeters

  • power supply: 12 to 24 Volts DC [cite: 34, 62]

  • dimensions: 102 by 89 by 52 millimeters

  • weight: approx. 185 grams [cite: 838]

  • operating temperature: 0 to 55 degrees Celsius [cite: 838]

  • humidity: 10 to 75 percent



Scope of offer, communication port and programming



The standard offer includes the RM5B Evolution ccTalk validator with a traditional serial port[cite: 63, 74].

Additionally, for a fee, the customer can choose:

  • a version of the validator with a USB port

  • coin and token programming service

To perform programming, please specify:

  • which coins or tokens are to be accepted

In case of any doubts regarding the choice of configuration or the method of connecting the coin validator, please contact us. We will help you select the appropriate version for your specific device.

Brand
Comestero
Entity responsible for this product in the EU
SUZOHAPP POLAND SP. Z O.O.More
Address: ul. SKŁADOWA 1BPostal code: 62-023City: KONINKOCountry: PolandPhone number: +48 532 857 396E-mail: sales.eu@suzohapp.com
Series
RM5 Evolution
Warranty
Manufacturer’s warranty: 1 year
Brand
ComesteroMore
Firma Comestero, która produkuje akceptory monet RM5 Evolution, jest znana na całym świecie za swoją jakość i niezawodność. Akceptory te są cenione za wyjątkową selektywność oraz ekstremalną wszechstronność programowania, które umożliwiają klonowanie systemu, umożliwiające przenoszenie parametrów konfiguracyjnych z jednego akceptoru monet na inny​.
Coin Acceptor Housing
FMore
wrzut monety: góra lub przód; zwrot monety niezaliczonej: przód
Programming service
Without programming
With programming
Coins
5 cents
10 cents
20 cents
50 cents
1 euro
2 euros
token 1
token 2
USB port
Without USB port
With USB port (for ccTalk communication)
Manufacturer’s warranty: 1 year

The manufacturer guarantees repair of the equipment for up to 12 months from the date of purchase. Please contact us before submitting a warranty claim.
