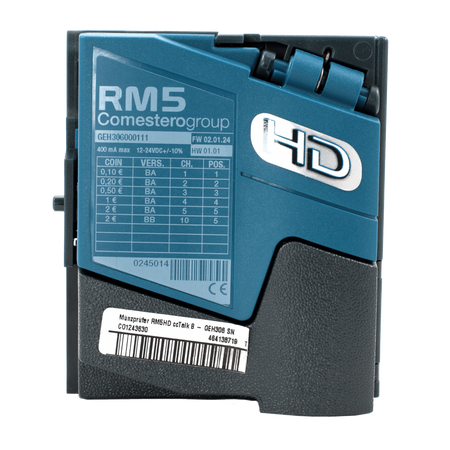

RM5 HD tropicalised Coin Validator

RM5 HD tropicalised by COMESTERO coin validator is an advanced and modern device available on the market.  Tropicalised version to adapt to environments exposed to adverse weather conditions. Coming from a known and well-estabilished producer it is guaranteed all products will be reliable and comprehensive. This model accepts up to 6 coins per second. It is available with two different coin slots. First option can be programmed for Euro currency and those which diameter is max. 27mm, and 2,4mm thick.Second option can handle coins which size is max. 31,5mm in diameter and 3,4mm thick. Special CLONING system allows trouble-free and quick copying settings between different devices of the same type. Included security system protects money from mechanical and electronical interception. Program fits EN 61000-6-3 (applies to emmision), EN 61000-6-1 (applies to electromagnetic compatibility) and EN 55022 (applies to radio disturbance characteristics) standards. Mechanics are split on 6 different models, each can be programmed in one out of 18 available configurations, making the device adapt for any requirements needed.

This model is available only on order. While making and order please choose device option, model, and configuration (seen below), for example: option A, model F, paralel version with separator.

COIN VALIDATOR RM5 HD TROPICALISED - AVAILABLE OPTIONS:

• A - optimized for receiving Euro and accepting coins up to 27 mm in diameter and up to 2.4 mm thick
• B - optimized for accepting and accepting coins up to 31.5 mm in diameter and up to 3.4 mm thick

COIN VALIDATOR RM5 HD - AVAILABLE MODELS:

• G (coin entry: top; coin reject: bottom)
• F (coin entry: top or front; coin reject: front)
• V (coin entry: top; coin reject: front)
• B (coin entry: top or front; coin reject: bottom)
• M (coin entry: top or front; coin reject: bottom)
• S (coin entry: top; coin reject: bottom)

AVAILABLE CONFIGURATIONS OF COIN VALIDATOR RM5 HD:

• Parallel Validator
• Parallel Validator with sorter
• Spain mode validator
• Binary Validator
• Confida Binary Validator
• Credit pulse emission totaliser
• Credit pulse emission totaliser with sorter
  control
• ccTalk Giochi Italia
• ccTalk Full

SPECIFICATION - RM5 EVOLUTION:

• Coin accepted:
  • A option: optimized for receiving Euro and accepting coins up to 27 mm in diameter and up to 2.4 mm thick
  • B option: optimized for accepting and accepting coins up to 31.5 mm in diameter and up to 3.4 mm thick
• Standards: EN 61000-6-3, EN 61000-6-1, EN 55022
• Operating temperature: 0 - 55 °C
• Humidity: do 75 %
• Power supply: 12~24 V DC
• Power consumption:
  • standby: up to 70 mA
  • acceptance: up to 400 mA
• Wage: 200 g
• Dimensions: 102 x 99 x 55.5 [mm]
