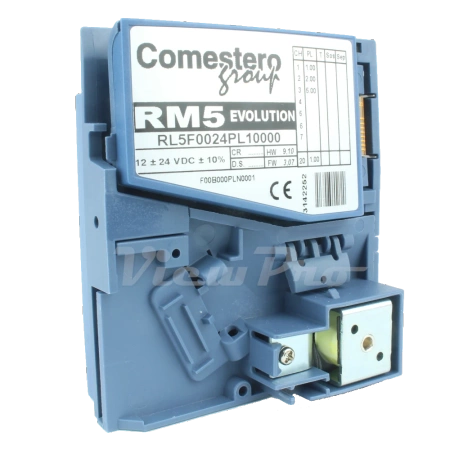

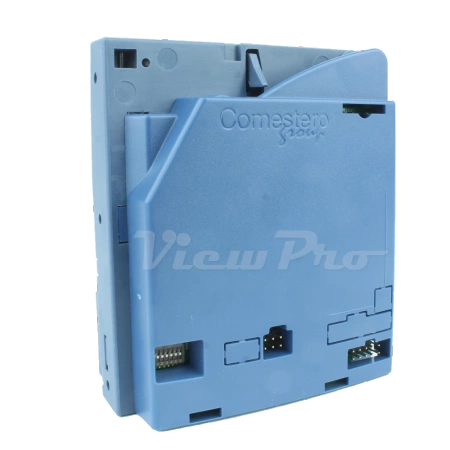

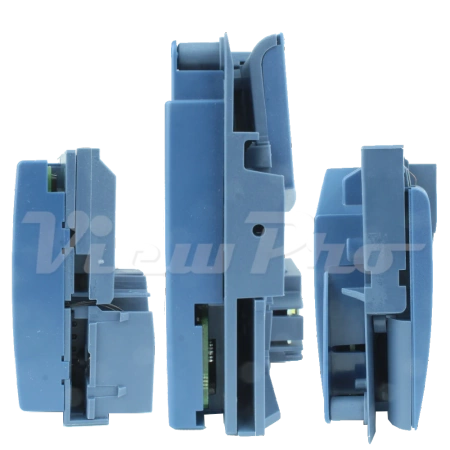

RM5 EVOLUTION Coin Validator

RM5 EVOLUTION by COMESTERO coin validator is an advanced and modern device available on the market. Coming from a known and well-estabilished producer it is guaranteed all products will be reliable and comprehensive. This model accepts up to 3 coins per second It can be programmed for 59 types of different types of coins, which diameter is within the range 16-31,5mm, and max. to 3,3mm thick. Special CLONING system allows trouble-free and quick copying settings between different devices of the same type. Included security system protects money from mechanical and electronical interception. Program fits EN 61000-6-3 (applies to emmision), EN 61000-6-1 (applies to electromagnetic compatibility) and EN 55022 (applies to radio disturbance characteristics) standards. Mechanics are split on 6 different models, each can be programmed in one out of 18 available configurations, making the device adapt for any requirements needed.

This model is available only on order. While making an offer please choose right model numer containing basic name RM5, chosen model, and chosen configuration (seen below), for example if order contains binary device, with upper coin throw-in, and unaccepted coin return in front, model numer will be: RM5 V B0.

COIN VALIDATOR RM5 EVOLUTION - AVAILABLE MODELS:

• G (coin entry: top; coin reject: bottom)
• F (coin entry: top or front; coin reject: front)
• V (coin entry: top; coin reject: front)
• B (coin entry: top or front; coin reject: bottom)
• M (coin entry: top or front; coin reject: bottom)
• S (coin entry: top; coin reject: bottom)

AVAILABLE CONFIGURATIONS OF COIN VALIDATOR RM5 EVOLUTION:

• 00 (Parallel Validator)
• 01 (Parallel Validator with sorter)
• E0 (Spain mode validator)
• AT (Spain mode validator with differentiated time
  pulses)
• B0 (Binary Validator)
• BC (Confida Binary Validator)
• 0M (Multipulse validator)
• 10 (2 price totaliser)
• 14 (1 price totaliser with timed internal reset)
• FD (Fountain totaliser)
• 20 (Credit pulse emission totaliser)
• 21 (Credit pulse emission totaliser with sorter
  control)
• 30 (Progressive timer)
• 3R (Progressive timer with timed credit pulse
  emission upon request)
• 3C (Progressive timer with counter outlet)
• 40 (Totaliser with credit pulse upon request)
• 60 (Totaliser with timed credit pulse emission
  upon request)
• 70 (Single-price multiple sale totaliser)

SPECIFICATION - RM5 EVOLUTION:

• Coins accepted: ∅ 16~31.5 mm, thickness up to 3.3 mm
• Channels: up to 59, each of them can be redirected to the outlets
• First 6 channels support Self-Prog mode
• Outlets: open collection (NPN)
• Standards: EN 61000-6-3, EN 61000-6-1, EN 55022
• Operating temperature: 0 - 55 °C
• Humidity: do 75 %
• Power supply: 12~24 V DC
• Power consumption (12 V DC):
  • standby: up to 35 mA
  • reading: up to 50 mA
  • acceptance: up to 350 mA
• Wage: 185 g
• Dimensions: 102 x 89 x 52 [mm]
