PA02645 - Multi Note Float Final Assembly
- This is a presentation of the PA02645 banknote dispensing module.
- The module must be purchased as part of a complete set together with a validator, bezel, and banknote cashbox.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Save by buying more

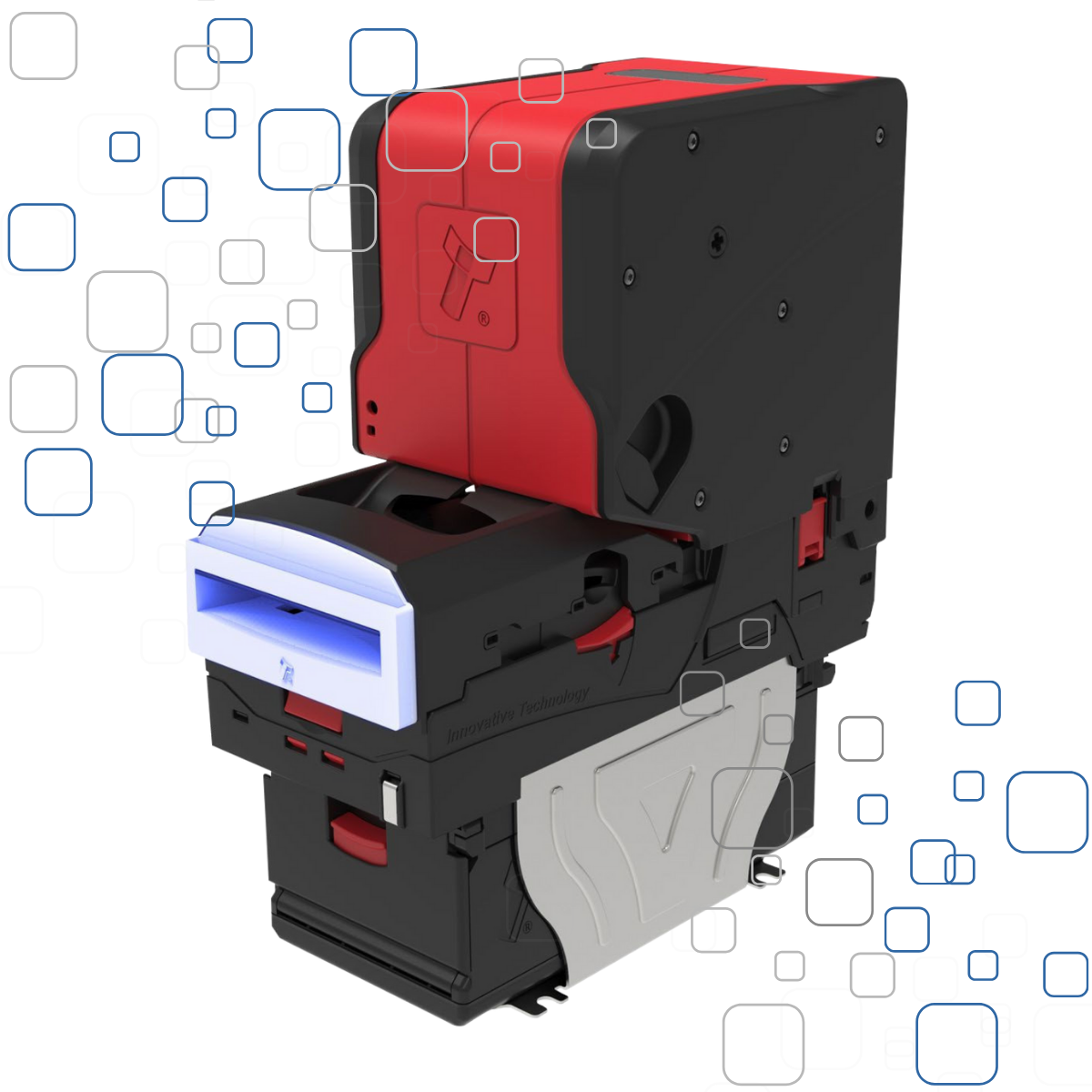

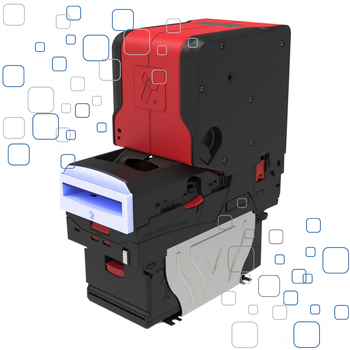

NV22 – Complete Banknote Validator Set with Cash Recycling Function

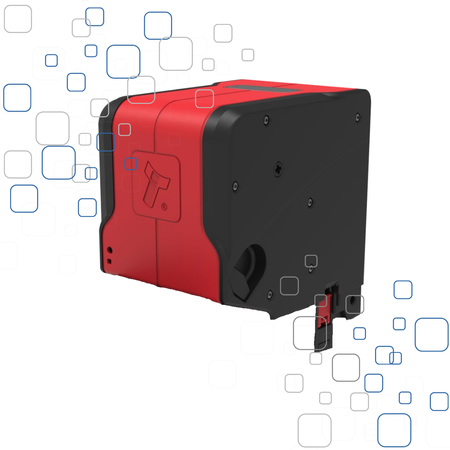

PA02645 – Multi Note Float Final Assembly is an advanced banknote dispensing and storage module (Multi Note Float) from Innovative Technology, forming a key component of the complete NV22 system, which is based on the NV9 Spectral banknote validator.
This page presents the Multi Note Float module only, which is not available for standalone purchase and can be obtained exclusively as part of the complete NV22 set.
The NV22 system has been designed as an advanced cash recycling solution, offering significantly greater flexibility in cash management compared to standard systems based on a single note float.
Key Features of the PA02645 Module:
-
Multi Note Float functionality – simultaneous storage of multiple banknotes
-
Capacity up to 40 banknotes – increased capacity compared to the classic NV11 note float
-
Dispensing of any stored banknote – full control over change payout and cash refunds
-
Part of the NV22 system based on NV9 Spectral – designed to work with the modern Spectral validator
-
Advanced cash recycling – improved cash handling efficiency and reduced service interventions
-
Modular OEM design – intended for integration into self-service devices
-
Industrial-grade build quality – suitable for intensive commercial operation
Technical Information (Module):
-
Type: Banknote dispensing and storage module (Multi Note Float)
-
Capacity: Up to 40 banknotes
-
Function: Banknote storage and dispensing
-
System: Component of the NV22 set (NV9 Spectral + Multi Note Float)
-
Intended use: Self-service systems, vending machines, and cash recycling applications
Applications of the NV22 System with PA02645:
-
Vending machines with advanced change dispensing
-
Self-service terminals
-
Sales and information kiosks
-
Parking and ticketing systems
-
Gaming and amusement machines
-
OEM devices requiring full cash recycling functionality
PA02645 – Banknote Dispensing Module for NV22 Spectral
PA02645 vs Classic Note Float (NV11):
| Feature | NV11 – Note Float | NV22 – Multi Note Float (PA02645) |
|---|---|---|
| Capacity | Approx. 30 banknotes | Up to 40 banknotes |
| Dispensing principle | Last accepted banknote is dispensed | Any stored banknote can be dispensed |
| Payout flexibility | Limited | Full control over payout logic |
| Application | Basic change dispensing | Advanced cash recycling |
As a result, the NV22 system with PA02645 provides a far more flexible and efficient solution compared to systems based on NV11.
Why choose PA02645 as part of the NV22 set?
PA02645 – Multi Note Float Final Assembly, combined with the NV9 Spectral validator, creates the advanced NV22 system, offering higher capacity, full control over banknote dispensing, and a significantly higher level of functionality than traditional note float solutions. It is the ideal choice for projects requiring modern and efficient cash handling.
If you need assistance configuring the NV22 system, comparing it with NV11, or selecting the right components for your cash recycling solution, contact us. We’ll be happy to advise and prepare a solution perfectly tailored to your project.
All Innovative Technology devices come with a 12-month manufacturer’s warranty. This warranty covers material and manufacturing defects that occur under normal operating conditions.
Some products (such as Smart Hopper, NV9S, NV200) also have warranty limits based on the total number of operating cycles. In these cases, the warranty is valid until the first limit is reached:
either 12 months or the specified number of cycles.
The warranty does not cover damage resulting from improper use, the use of non-original parts or consumables, or devices that have exceeded their declared cycle lifespan.
Before sending a device for warranty service, it is recommended to check the cycle count and contact the seller or an authorized ITL service center to confirm eligibility for repair.
Warranty repairs are carried out exclusively in authorized ITL service centers or in the manufacturer’s technical departments.
